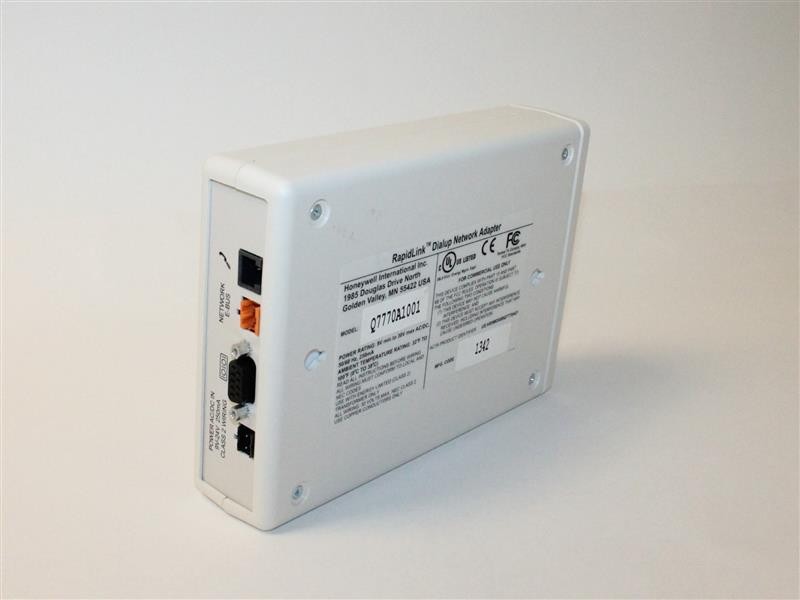

Honeywell Q7770A1001/U RapidLink Dial-Up Network Adapter

$ 171.6

Humidity (non-condensing): Operating: 25 to 95% RH at 50C. Storage: 95% maximum at 50C Operating Input Current (Typical): 120 mA Serial Port Bit Rate: 115200 bps Temperature: Storage: 40F to +185F (-40C to +85C) MPN: Q7770A1001/U Approvals: UL, cUL, FCC, CE Dimensions: 7-1/2 in x 5-7/16 in x 1-3/16 in (190 mm x 138 mm x 46 mm) Temperature: Operating: 32F to +100F (0C to +38C) Bus Polarity: Polarity insensitive System Processor: Ubicom IP2022 RISC Processor Input Operating Voltage: 9 to 24 Vac or Vdc Power Supply (only using removable screw terminals): 9 to 24 Vac or Vdc Class 2 UPC: 085267253932 Brand: Honeywell Supported Application(s): LONSPEC V4.6.5+, LONSTATION Multi-Site v4.6.0+, RapidZone v3.0.0+ Approved PC Side Modem: US Robotics 56K external V.90 Model: Q7770A RapidLink Network (E-Bus) Connector: Weidmuller - 2-conductor BLA E-Bus Service Interface: Service Switch and LED Modem Connection: On-board Modem supports remote connection with 56 Kbps speed Serial Connector Type: Female DB-9 Serial Port: EIA-232 (Formerly RS-232) Neuron Transceiver: Echelon, Neuron FT-3150 Smart Transceiver Modem Connector Type: RJ-11 Type: Dial-Up Network Adapter Power Polarity: Polarity insensitive Modem Dip Switch Settings: None

Description

Honeywell Q7770A1001/U RapidLink Dial-Up Network Adapter. The RapidLink Dial-up Network Adapter requires input power of 9 to 24 Vac or Vdc and at least 250 mA. RapidLink should be connected with UL Class 2 wiring only. The E-Bus network connector on the RapidLink is orange colored and located on the rear of the RapidLink enclosure. The RapidLink Dial-Up Network Adapter provides local access to LONWORKS Bus (E-bus) from a PC through an industry standard EIA-232 interface (previously called RS-232) or dial-up remote access through an on-board 56K bps modem. All of the RapidLink connections are located on the rear panel of the device. The RapidLink Dial-up Network Adapter interfaces with the LCBS family of controllers (i.e. Excel 10, Excel 15 and Q7300 / T7300 series of controllers, any third party controllers supported by LCBS family of controllers). It can be used with LONSPEC 4.6.5, LONSTATION Multi-Site 4.6.0, and RapidZone 3.0.0 or new versions of this software packages. The RapidLink Dial-up Network Adapter requires input power of 9 to 24 Vac or Vdc and at least 250 mA. RapidLink should be connected with UL Class 2 wiring only. The input power can be connected through the screw terminal connector supplied with RapidLink. The E-Bus network connector on the RapidLink is orange colored and located on the rear of the RapidLink enclosure. The mating connector is also a screw terminal type. RapidLink has LEDs that indicate activity on the serial, modem, and E-Bus. RapidLink has an LED indicating that the device is powered and an LED indicating that the E-Bus Service switch, located on the front panel, is being pressed. RapidLink also provides a Reset switch on the front panel. The RapidLink enclosure has provisions for both wall mounting and tabletop operation. FEATURES: High performance communications protocol provides for faster communication of data to your LONWORKS network. Serial EIA-232 interface connects host processors to LON WORKS networks. A fixed 115,200 baud rate is supported on serial the EIA-232 port to support direct local connections. On-board modem support with baud rate up to 56K bps to support remote dial-up connections. Uses LONWORKS network protocol.Integral FT-3150Æ smart transceiver. LONWORKS communicates through a 78-kilo-baud transformer-coupled transceiver. 9 to 24 Vac or Vdc Class 2 power input using a mating connector with removable screw terminals. Automatic dial-out using on-board modem for transferring alarm information to a central station (When used in conjunction with XL15A Building Manager). Easy migration for existing systems through one to one replacement of existing LON transceiver and external modem with RapidLink and upgrading LONSPEC , LONSTATION and XL15A firmware to 4.6.5, 4.6.0 and 2.4.61 (or later versions) respectively. Easy wall mounting or tabletop operation. Fast installation - No switches to configure. Easy to read labels to guide installation of wiring.
