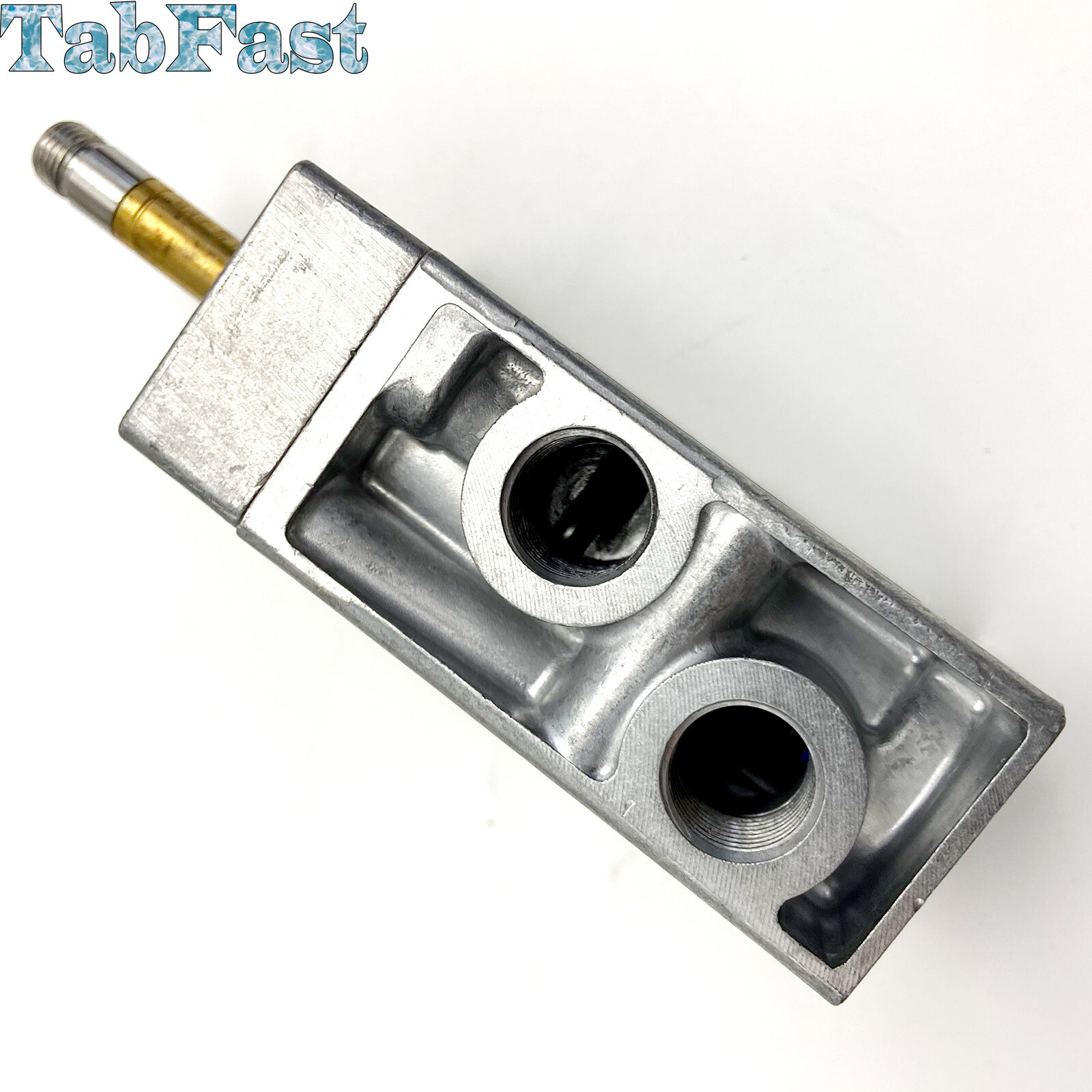

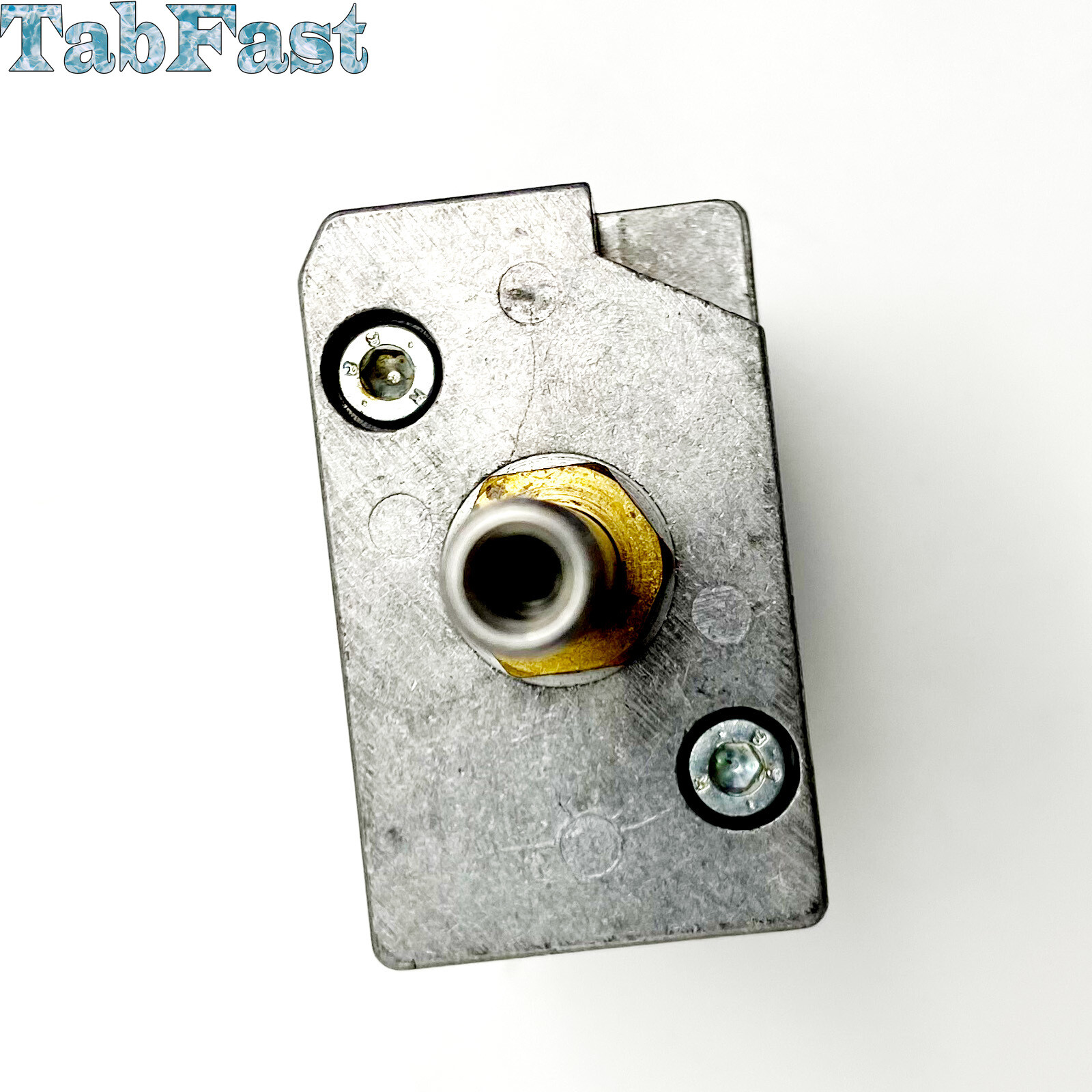

New Electric Solenoid Valve 3/2-way closed monostable for Festo MFH-3-1/4-S 7959
$ 36.11
Description
New Electric Solenoid Valve 3/2-way closed monostable for Festo MFH-3-1/4-S 7959. Festo Tiger Classic valves. Poppet seat. 1 x NEW MFH-3-1/4-S 7959 PLC Solenoid Cla ssic Valve 230VDC 240VAC. Manual override. - Solenoid actuated, pilot actuated. Type of reset. In-line valve. Valve Function. Connection G1/8, G1/4, G1/2, G3/4 Flow rate 500 ... 7500 l/min Voltage 12 ... 230 V DC, 12 ... 240 V AC In-line valve - Solenoid actuated, pilot actuated - Pneumatically actuated Manifold sub-bases Manifold rails Product Specification: Product Type Festo Tiger Classic valves Short type code MFH Valve Function 3/2 closed, monostable Electrical Connect Via F coil, must be ordered separately Mounting on manifold rail Mounting Optional Mounting With through hole Pilot air supply External Manual override Detenting Type of reset Mechanical spring Ambient temp -5 - 40 °C Assembly position Any Auxiliary pilot air port 12 M5 Design structure Poppet seat Grid dimension 32 mm Materials information for seals NBR Materials information, housing Aluminium die cast Medium temperature -10 - 60 °C Nominal size 7 mm Operating medium filtered compressed air, grade of filtration 40 µm, lubricated or unlubricated Operating Pressure -0.95 - 10 bar Pilot exhaust port 82 M5 Pilot pressure 1 - 8 bar Pneumatic connection, 11 G1/4 Pneumatic connection, port 1 G1/4 Pneumatic connection, port 2 G1/4 Pneumatic connection, port 3 G1/4 Pneumatic working line G1/4 Product weight 320 g Protection class IP65 Sealing principle Soft Standard nominal flow rate 800 l/min Switching time off 29 ms Switching time on 10 ms Type of actuation electrical Type of piloting Piloted Package Include: 1 x NEW MFH-3-1/4-S 7959 PLC Solenoid Cla ssic Valve 230VDC 240VAC
